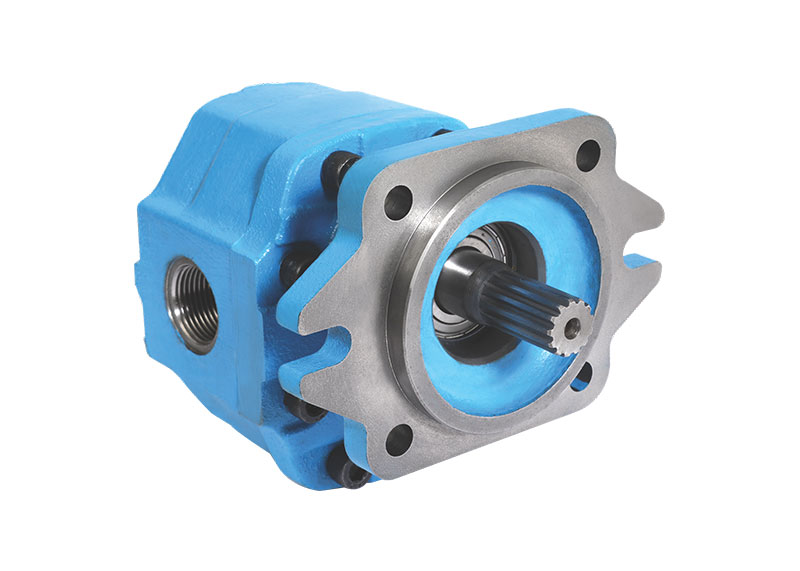

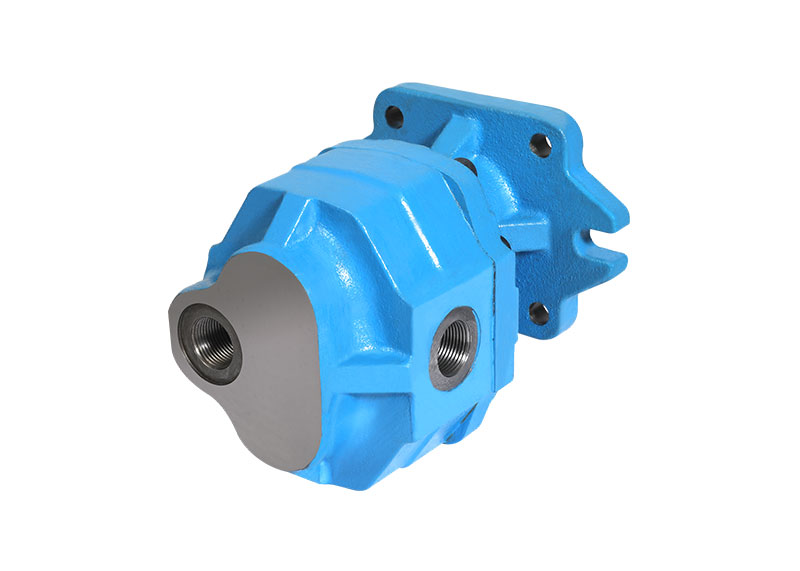

SERIES 811 - GAMMA LOADER
Cast Iron Hydraulic Gear pump displacements from 28 cc/rev. to 83 cc/rev. Max. peak pressure up to 250 bar max. Application : Front and Backhoe loaders, Earthmoving and Construction Machines, Truck Pto's etc.
| Pump Type | Displacement cc/rev. | Pressure In Bar | Max. Speed rpm | A | B | C (Suction Port) | D (Delivery Port) | |
|---|---|---|---|---|---|---|---|---|
| mm | mm | side | rear | |||||
| MCP 30-28 | 28.0 cc | 280 | 2600 | 102 | 158 | G 1" | G 1" | |
| MCP 30-35 | 35.0 cc | 280 | 2300 | 103 | 161 | |||
| MCP 30-39 | 39.0 cc | 280 | 2300 | 106 | 166 | |||
| MCP 30-44 | 44.0 cc | 280 | 2100 | 109 | 169 | |||
| MCP 30-52 | 52.0 cc | 230 | 2100 | 105 | 173 | G 1-1/4" | G 1-1/4" | |
| MCP 30-55 | 55.0 cc | 230 | 2100 | 107 | 175 | |||
| MCP 30-62 | 62.0 cc | 210 | 2000 | 110 | 180 | |||
| MCP 30-65 | 65.0 cc | 210 | 1800 | 112 | 182 | |||
| MCP 30-74 | 74.0 cc | 180 | 1600 | 114 | 183 | |||
